Optimal charging characteristics to match the battery.
Charging control circuitry provides optimal charging and protection operation.
Equipped with a display operation panel to show the operating status.
Voltage is measured in the immediate vicinity of the charging target to improve voltage accuracy.
*Compatible only with quick chargers.
Charging characteristic settings can be switched by signal input.
*Only supported by quick chargers.

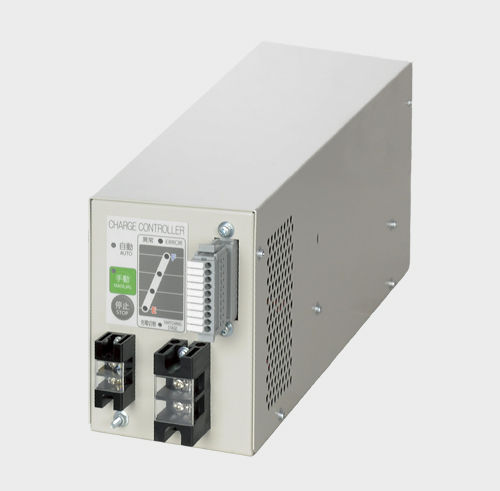

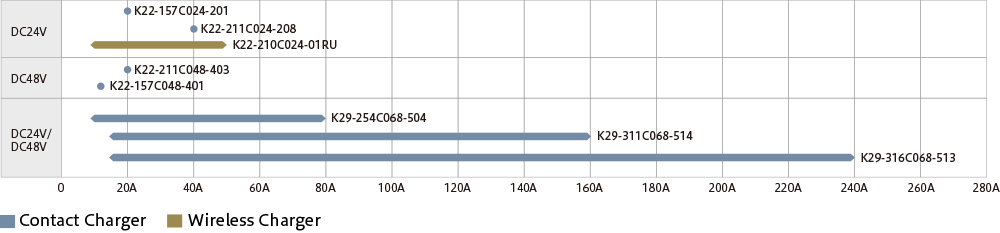

Compact battery charger
Rapid charger
Model | K22-157C024-201 | K22-157C048-401 | K22-211C024-208 | K22-211C048-403 | |
---|---|---|---|---|---|
Methods | Charging Methods | Combination of constant voltage/constant current | |||
Control Method | Inverter control method | ||||
Input | Phase | 1Φ | |||
Frequency | 50/60Hz ±5% max. | ||||
Rated Voltage | AC100~240V | ||||
Rated Current※1 | AC 6.7A | AC 13.4A | |||
Capacity※1 | 670VA | 1.34kVA | |||
Output | Rated Voltage | DC 28.6V | DC 57.2V | DC 28.6V | DC 57.2V |
Rated Current | DC 20A | DC 10A | DC 40A | DC 20A | |
Battery | Type | Lithium ion | |||
Weight | Approx. 3.5kg | Approx. 4.3kg | |||
Dimensions | 135(W)×425.5(D)×140(H)mm | 135(W)×445.5(D)×140(H)mm | |||
Operating Temperature | -20 ~ 40℃ | ||||
Communication | I/O by open collector |

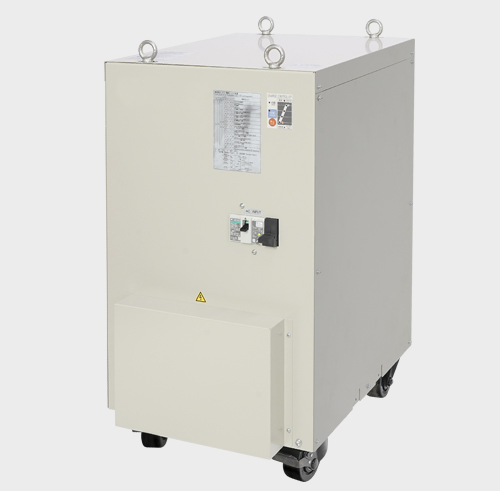

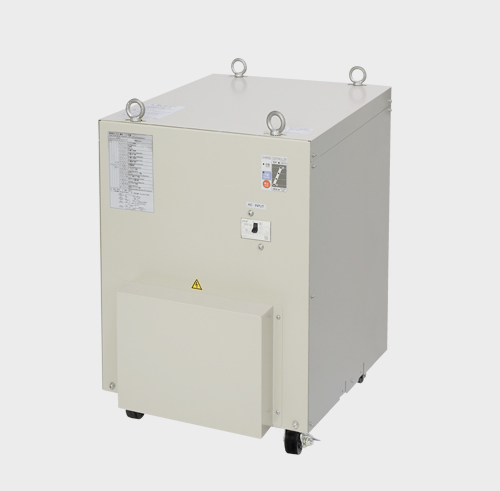

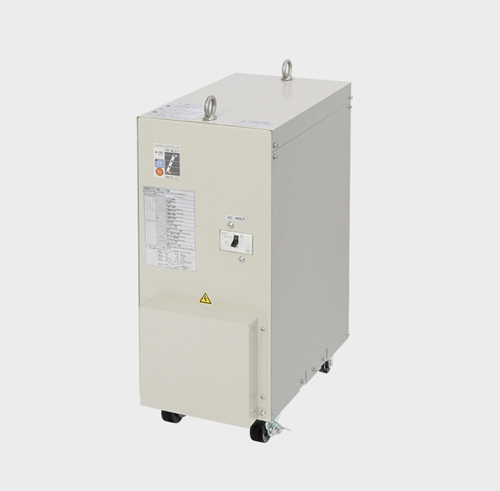

Model | K29-254C068-504※2 | K29-311C068-514※2 | K29-316C068-513※2 | |
---|---|---|---|---|
Model | Charging Methods | Combination of constant voltage/constant current (factory setting) | ||
Control Method | 3-phase transformer + step-down chopper control method | |||
Input | Phase | 3Φ | ||
Frequency | 50/60Hz ±5%以内 | |||
Rated Voltage | AC 200/ 220V | |||
Rated Current※1 | AC 19A | AC 39A | AC 55A | |
Capacity※1 | 6.5kVA | 12.1kVA | 19.5kVA | |
Output | Rated Voltage | DC 24~68V(Factory default: DC68V ) | ||
Rated Current | DC 8~80A(Factory default: DC80V ) | DC 16~160A(Factory default: DC160V ) | DC 24~240A(Factory default: DC240V ) | |
Battery | Type | Lithium-ion batteries, nickel-metal hydride batteries, lead-acid batteries, capacitors | ||
Weight | Approx. 70kg | Approx. 160kg | Approx. 200kg | |
Dimensions | 245(W)×440(D)×600(H)mm | 470(W)×440(D)×643(H)mm | 500(W)×540(D)×820(H)mm | |
Operating Temperature | -10 ~ 40℃ | |||
Communication | I/O by open collector |
1: At rated input/output. 2 User-set functions are supported.

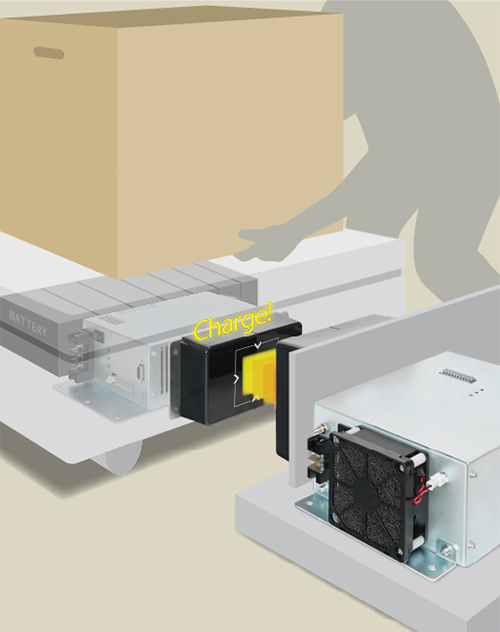

Model | ||
---|---|---|

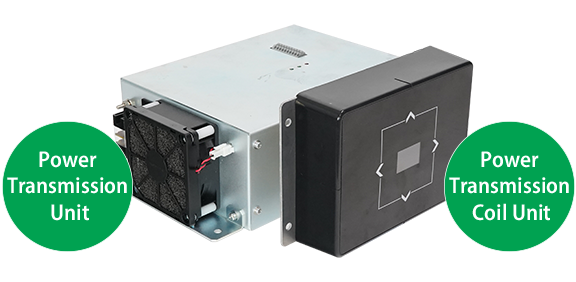

Power Transmission Unit K22-210C024-01TU |
Input phase | 1φ |
Input Frequency | 50/60Hz ±5% max. | |
Rated Input Voltage | AC 200 ~ 240V | |
Input Voltage fluctuations | AC 180 ~ 264V | |
Rated Input Current | AC 6.5A | |
Capacity | 1300VA | |
Power factor※1 | Above 0.9 | |
Weight | 3.5kg | |
Dimensions | 175(W)×290(D)×90(H)mm | |
Power Transmission Coil Unit K22-210C024-01TH |
Weight | 2.5kg |
Dimensions | 130(W)×200(D)×45(H)mm | |

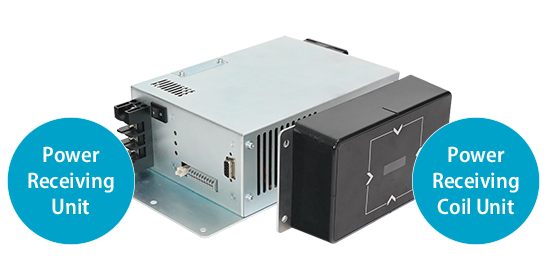

Power Receiving Unit K22-210C024-01RU |
Charging Methods | Combination of constant voltage/constant current |
Rated Output Voltage | DC 30V | |
Voltage Range | DC 24 ~ 30V | |
Rated Output Current | DC 33.5A | |
Current Range | DC 10 ~ 33.5A | |
Normal Rated Power(NRP) | 1kW | |
Weight | 2.8kg | |
Dimensions | 155(W)×300(D)×82(H)mm | |
Power Receiving Coil Unit K22-210C024-01RH |
Weight | 1.6kg |
Dimensions | 100(W)×190(D)×45(H)mm | |
Storage Battery | Type | Lithium-ion batteries, lead-acid batteries |
Voltage Range | DC 16 ~30V |
*1. The above values are for rated input/output.
