Battery Chargers for Forklifts

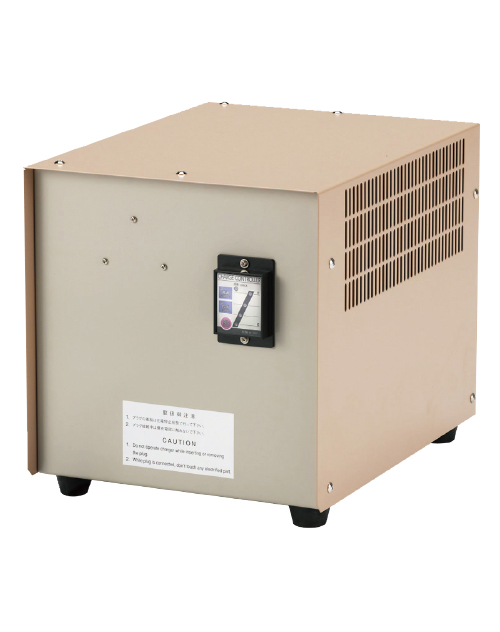

Charger for Forklift
フォークリフト用充電器

Easy operation

The display operation panel has simple control buttons for quick and easy setup. Operation status can also be checked.

Charging status at a glance

Charging progress can be checked on the level meter display.

Appropriate charge level management

A microcomputer monitors battery status and properly manages the charge level.

Wide Variety

A wide variety of chargers are available to provide the right charger for your battery.

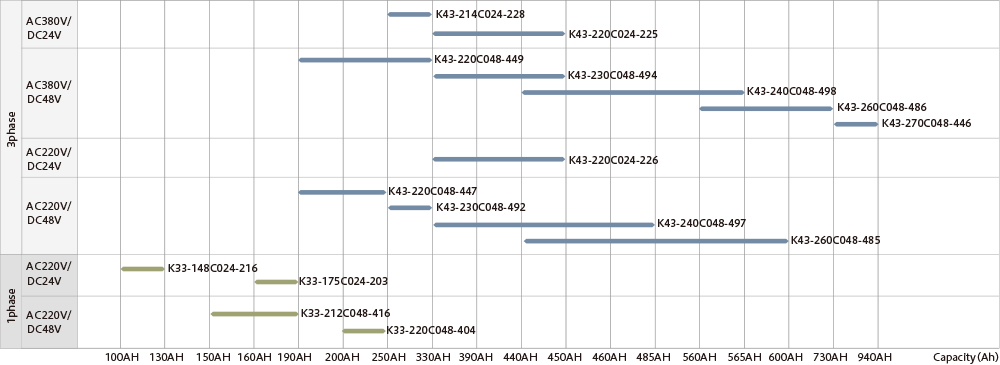

chargers lineup

380V/3Phase

Battery Charger
Voltage(V) Capacity(Ah) Model Connector Dimensions
24V 250-330 K43-214C024-228 SB175 GRAY 340×450×367mm
330-450 K43-220C024-225 SB175 GRAY
SB175 RED		 340×450×367mm
48V 190-330 K43-220C048-449 SB175 GRAY
SB175 BLUE
SB350 GRAY		 340×450×367mm
330-450 K43-230C048-494 SB175 GRAY
SB175 BLUE
SBE160 BLUE
SB350 GRAY
SBE320 GREEN		 340×450×367mm
440-565 K43-240C048-498 SB175 GRAY
SB175 BLUE
SBE160 BLUE
SB350 GRAY
SBE320 GREEN		 340×450×367mm
560-730 K43-260C048-486 SB350 GRAY
SB350 BLUE
SB175 BLUE
SB175 GRAY		 340×450×367mm
730-940 K43-270C048-446 SB350 GRAY
SB350 BLUE		 500×575×367mm

220V/3Phase

Battery Charger
Voltage(V) Capacity(Ah) Model Connector Dimensions
24V 390-450 K43-220C024-226 SB175 RED 340×450×367mm
48V 190-250 K43-220C048-447 SB175 BLUE 340×450×367mm
250-330 K43-230C048-492 SB175 BLUE 340×450×367mm
330-485 K43-240C048-497 SB175 BLUE 340×450×367mm
440-600 K43-260C048-485 SB175 BLUE 340×450×367mm

220V/1Phase

Battery Charger
Voltage(V) Capacity(Ah) Model Connector Dimensions
24V 100-130 K33-148C024-216 D1 Plug 200×260×160mm
160-190 K33-175C024-203 SB175 GRAY 340×450×367mm
48V 150-190 K33-212C048-416 SB175 GRAY 340×450×367mm
200-250 K33-220C048-404 SB175 GRAY 340×450×367mm
